2W 3W Rubber Motorcycle Tire Automatic Bom Hydraulic Curing Press Machine with Individual PLC

Get the 2W 3W Rubber Motorcycle Tire Automatic Bom Hydraulic Curing Press Machine with Individual PLC from our factory. High-quality and efficient tire curing press for your production needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
710
Tire Size
8~21"
Heating Platen Diameter
710/810/910mm
Heating Platen Clearance
900mm
Working Clamping Force
80~100t/Mold
Max Green Tire Height
450mm
Cylinder Size
Φ250×1600mm
Closing Speed
30mm/S
Hydraulic System
1:8 or as Required
Center Mechanism
Standing Post
Transport Package
Shipping Container
Specification
28"/36"/42"
Trademark
MYF
Origin
China Mainland
Production Capacity
50units/Month

Product Description

Qingdao MYF Machinery Co - Motorcycle tire plant solution supplier.
Your reliable motorcycle tire making machine supplier.

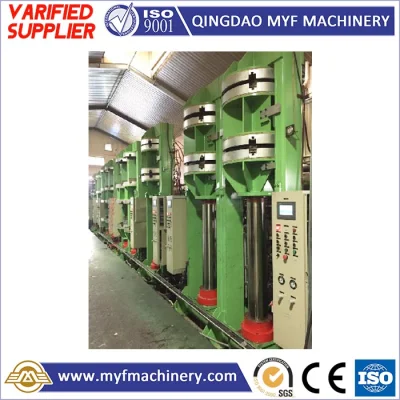

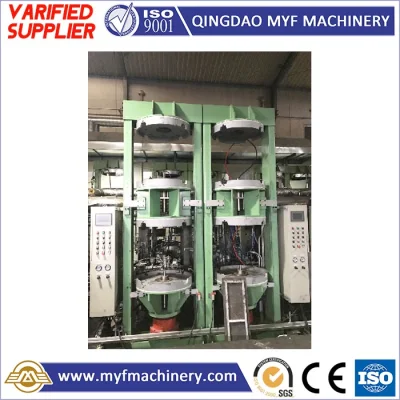

Motorcycle tire hydraulic B.O.M Curing press is perfect for making both motorcycle and scooter tires. Its strong heat treated welded frame achieves mininum deformation to increase curing quality.

Specifications:
Applicable tire size 8~21"
Heating platen size 710/810/910mm
Heating platen clearance 900mm
Working clamping force 80T/mold
Max green tire height 450mm
Closing speed 30mm/s

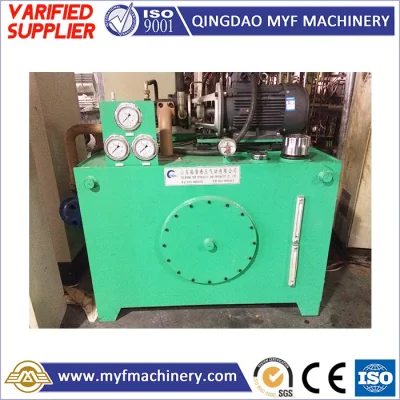

Hydraulic system 1:8 or as required
Center mechanism Standing post
2W 3W Rubber Motorcycle Tire Automatic Bom Hydraulic Curing Press Machine with Individual PLC
2W 3W Rubber Motorcycle Tire Automatic Bom Hydraulic Curing Press Machine with Individual PLC
2W 3W Rubber Motorcycle Tire Automatic Bom Hydraulic Curing Press Machine with Individual PLC
2W 3W Rubber Motorcycle Tire Automatic Bom Hydraulic Curing Press Machine with Individual PLC
2W 3W Rubber Motorcycle Tire Automatic Bom Hydraulic Curing Press Machine with Individual PLC
2W 3W Rubber Motorcycle Tire Automatic Bom Hydraulic Curing Press Machine with Individual PLC
2W 3W Rubber Motorcycle Tire Automatic Bom Hydraulic Curing Press Machine with Individual PLC
2W 3W Rubber Motorcycle Tire Automatic Bom Hydraulic Curing Press Machine with Individual PLC


Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
