Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool

Looking for the best price on a Tz-850b lathe grinder cutting machine for metal? Look no further! Our factory offers top-quality CNC milling machine tools at competitive prices.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Photos
  • Application
  • Anoher Advantages
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
TZ-850B
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
CNC System
M80b Mitsubishi/ Japan
Spindle and Three-Axis Servo Motor
Mitsubishi/ Japan
Spindle
Dejiu Taiz/ Taiwan
Ball Screw
Yintai or Shangyin/ Taiwan (C3)
Screw Bearing
P4NSK/ Japan
a.T.C Capacity
Taiz or Deda/ Taiwa
Coupling
R+W\Nbk/German
Transport Package
Plywood Case
Specification
2400*2250*2650
Trademark
TAIZ
Origin
China
HS Code
8457101000
Production Capacity
2000 Sets Per Month

Packaging & Delivery

Package Size
2600.00cm * 2350.00cm * 2750.00cm
Package Gross Weight
5050.000kg

Product Description

TZ-850B Cutting Machine for Metal Best Price CNC Milling Machining Cente

Product Description

TZ-850B TAIZ high-speed drilling and tapping machining center series products are based on the world's most popular and advanced flexible machine tool design concept development, mainly used for the processing of non-ferrous metals, 3C industry, communication cavity, aluminum substrate drilling, tapping processes.Can achieve drilling, milling processing, fast moving speed, high spindle speed.
The efficiency and quality of drilling and tapping is more than 10 times that of ordinary machining centers, and it is the most ideal processing equipment for customers in 3C, communication cavity and other industries.
Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool

Product Parameters

Model TZ-640B TZ-740B TZ-850B TZ-1000B TZ-1300B
Worktable size L*W (mm) 700x400 800x400 1000x500 1100x500 1400x650
Work table Max. loading kg 300 330 400 450 500
T-slots size  (N×W×D)  mm 3x14x125 3x14x125 5x18x90 5x18x90 5x18x135
X/Y/Z axis travel mm 600/400/300 700/400/300 800/500/420 1000/500/420 1300/650/450
X/Y/Z axis feed speed m/min 48/48/48 48/48/48 48/48/48 48/48/48 22/40/40
X/Y/Z axis motor kw 1.5/1.5/3 kw 1.5/1.5/3 kw 2/2/3 kw 2/2/3 kw 2/2/3 kw
X/Y/Z axis linear Guide mm 30/30/30 30/30/30 35/35/35 35/35/35 35/35/35
Spindle taper   BBT30 BBT30 BBT30 BBT30 BBT30
Max. spindle speed rpm 20000 20000 20000 20000 20000
Spindle motor power kw 5.5 5.5 5.5 5.5 5.5
Distance from spindle nose to workbench mm 150-450 150-450 150-570 150-570 120-570
A.T.C capacity pcs 21 21 21 21 21
Positioning accuracy (X/Y/Z) mm  ±0.005/300  ±0.005/300  ±0.005/300  ±0.005/300  ±0.005/300
Re-positioning accuracy(X/Y/Z) mm  ±0.003/300  ±0.003/300  ±0.003/300  ±0.003/300  ±0.003/300
Machine weight kg 3600 3800 4200 4800 5500
Machine size (L*W*H)  mm 1850*2300*2250 1900*2300*2250 2400*2250*2650 2700*2500*2350 2900*2500*2350


Detailed Photos

General Description
The machine ADAPTS to the development trend of precision and high efficiency in the processing industry, and processes products such as electronic communications and textile parts with high efficiency and high precision to meet the most challenging processing requirements of various industries. The machine tool fully adopts the latest finite element simulation optimization design method, which is comprehensively optimized on the basis of the overall strength and stiffness of the machine tool to achieve the best dynamic machining performance. It is a representative and model of modular design and ergonomic design of international processing equipment.

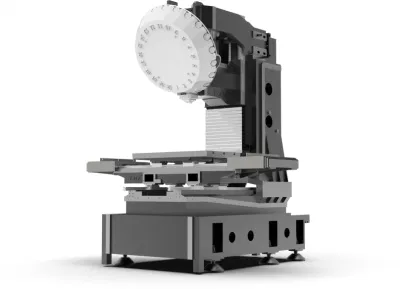

Entire Distribution

Spindle and motor directly connected motor design, the main motor using low inertia motor.
Three axis straight slide, full support design.

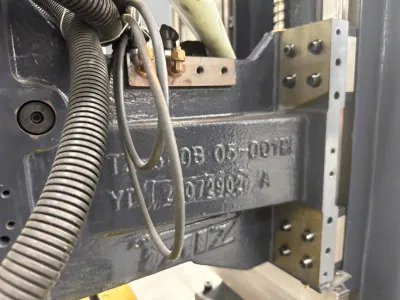

The main parts are made of the same casting by the same manufacturer of Dema Brothers. High strength, high density resin sand impregnated casting.
Castings are calculated and analyzed by computer finite element analysis.

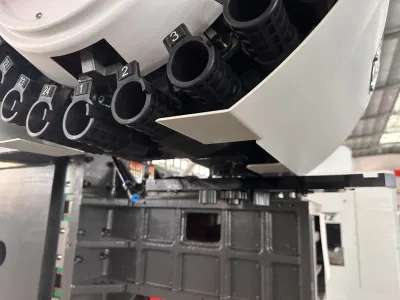

21-tool clamping arm tool library, tool change time up to 2.4 seconds.
Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool

Main Parts of Equipment
(1) Base
Large-span heavy base, guide rail specifications are 1.2 times greater than the same industry, effectively disperse gravity and processing capacity; Short saddle overhang greatly improves dynamic accuracy; The Y-axis motor rear design also helps to reduce the distance between the operator and the table, suitable for upper and lower workpieces, and greatly improve the processing convenience (as shown below).

Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool
Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool

(2) Uprights
(a) The herringbone column is more stable and more convenient to maintain than the one-column column.
(b) The design of the herringbone structure bed gold protection and chip removal system is more mature to avoid the installation of sheet metal water leakage from the mechanical structure.
(c) The use of high-strength screws to fix, effectively improve the rigidity of the column, avoid vibration during processing, and be more stable during heavy cutting.
(d) The shaft slint-bone structure is thickened at the same time, which greatly improves the rigidity of the bed, makes the processing more stable, and extends the service life of the machine tool.

Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool
Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool

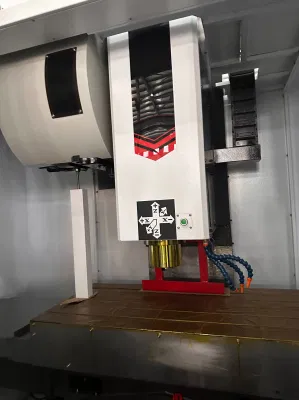

(3) Headstock

The optimum contact ratio between the headstock and the column, coupled with the short nose-end Taiwan spindle, results in greater chip cutting capability for Taijing machine tools. Can complete drilling, milling, tapping, boring and other processes.
Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool

(4) Precision Spindle with High Precision, High Performance and High Stability
(a) The spindle set is made in Taiwan. The main shaft grab tool is based on the butterfly spring on the main shaft, and the tension is applied to the pull nail of the tool handle through the four-jaw broach mechanism, which is closely matched with the taper hole of the main shaft to realize the grab tool.
(b) The use of low inertia spindle motor, short acceleration time, improve tapping speed and quality. Spindle direct drive, with spindle orientation function.

Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool
Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool


(5) Machine Tool Protection


The lathe bed guide rail (XY axis) adopts stainless steel telescopic sheet metal; The column guide rail (Z axis) adopts organ type and armor type protection; The machine is fully enclosed to prevent iron filings and coolant from splashing, so that the operator can work in a safe and comfortable environment.
Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool

(6) Power distribution
In addition to the mechanical design, Taijing machine tools also pay attention to the electrical design, the CNC system uses a unique optical fiber communication mode, which greatly improves the speed of data communication, and greatly reduces the number of wiring, so that the electrical cabinet is cleaner.

Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool
Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool

Application

• Taiz CNC machine center integrates the function of milling, drilling and tapping
• CNC Machining for various size of the metal profile, such as aluminum, steel, copper and non-metal materials
• CNC Vertical Machine tools is widely used in industries of 3C electronics, rail transportation, aerospace,  liner module guide rail and etc.

Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool

Anoher Advantages

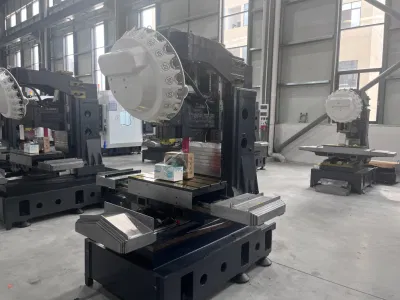

Excellent processing conditions and good production environment
Imported horizontal machining center, vertical machining center, CNC boring machine (rotating table) and gantry guideway grinding machine, effectively ensure the accuracy of the workpiece, greatly improve the assembly accuracy, and the durability of the accuracy.

Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool
Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool

Advanced detection methods
Positioning accuracy test and best correction with laser, using strict German VDI3411 inspection specification (5 times each)

Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool
Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool

Rigorous machining testing
Each machine tool must go through a strict processing side test before leaving the factory to ensure that it can accept the test of actual processing and meet the corresponding processing accuracy requirements.

Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool
Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool
Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool



Company Profile

Guangdong Taizheng Intelligent Equipment Co., Ltd. was established in June 2010,is a set of intelligent equipment research anddevelopment, production, sales and service in one of the national high and new technology enterprise, the product has the high speeddrilling iron machining center, vertical machining centers, horizontal machining center, gantry machining center, pentahedron mach-ining centers and other series of precision machining equipment. After years of development, it has become one of the largest machinetool manufacturers in Taiwan and Mainland China.

Company since its inception,adhere to the "diligence, quality, innovation, win-win"concept of value, constantly explore innovative, whole image into the pursuit of the top performance of the machine, always held firm to provide clients with reasonable prices,excellent quality of machinery, each machine tool design and manufacture of machine with high precision, high performance, nighefficiency, long life as a standard, It has shaped the brand of TaiZheng machine tool and become the symbol of high quality workingmachine.


Tz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine ToolTz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine ToolTz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine ToolTz-850b Lathe Grinder Cutting Machine for Metal Best Price CNC Milling Machine Tool

FAQ

1.What's the Payment Terms?
A: T/T, 40% initial payment when order, 60% balance payment before shipment.

2.What is your trade terms?
A:FOB CFR and CIF all acceptable.

3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 30days. if some special machines will be some longer.You can place order accordingto delivery time and ship time we will give you the answer accordingly.

4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

5. What is the package of the machines?
A:The machines standard will be packed in wood case.

6:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

7: Where is our factory located? How can I visit there?
A : Our factory is located in Area C, Heshan Industrial City, Heshan City, Jiangmen City.  You are warmly welcomed to visit us.
