Open Front Single Point Mechanical Hydraulic Power Press Punching/Punch Machine

Looking for an Open Front Single Point Mechanical Hydraulic Power Press Punching Machine? Visit our factory for high-quality, reliable products.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Parameters
  • FAQ
Overview

Basic Info.

Model NO.
MPH21 series
Power Source
Pneumatic
Precision
Normal Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Color
White/Red/Custmized
Control System
PLC
Frame Type
C-Frame
Model
Mph21
Frame
Sheet Welding
Drive
Crankshaft
Transport Package
Export Package
Specification
25T~400T
Trademark
Boli
Origin
China
HS Code
8462991000
Production Capacity
5000pieces/Year

Product Description

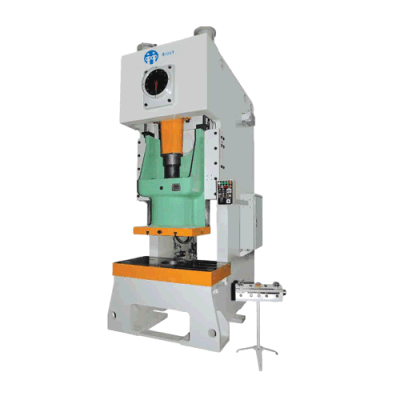

MPH21 series Open Front Single Point Press With High Performance

Open Front Single Point Mechanical Hydraulic Power Press Punching/Punch Machine
Open Front Single Point Mechanical Hydraulic Power Press Punching/Punch Machine

Features:

>  JIS 1 accuracy.

>  Steel welded framewith high rigidity.

>  Motor with inverter.

>  Combined wet friction clutch.

>  Rectangular hexahedral lengthened guide, MPH21-315/400 with octahedral lengthened guide.

>  Hydraulic overload protector.

>  MPH21-45/45: manual adjusting, scale indicated.

>  MPH21-45: optional elec. adjustment with digital display.

>  MPH21-63: superior elec. adjustment with digital display.

>  Lifting balance cylinder.

>  Imported dual solenoid value.

>  Elec. forced grease lubrication.

>  Balance cylinder: manual oil lubrication.

>  Integrated panel ( elec. cam included).

>  PLC control of international brand.

>  Contactor and button of international brand.

>  (1) set blowing device.

>  Optional: air cushion, light curtain, automotive device.

Product Parameters



model MPH21-25 MPH21-45 MPH21-63 MPH21-80 MPH21-110 MPH21-125 MPH21-160B MPH21-200B MPH21-250B MPH21-315B MPH21-400B
nominal force KN 250 450 630 800 1100 1250 1600 2000 2500 3150 4000
nominal stroke mm 3 4 4 5 6 6 6 6 8 8 10
slide stroke mm 80 100 120 140 160 160 160 200 250 250 250
SPM fixed(optional) min -1 100 80 70 60 50 50 40 35 30 30 25
variable min -1 80-120 70-90 60-80 50-70 40-60 40-60 35-50 30-40 25-35 25-35 20-30
max. die height mm 250 270 300 320 350 350 350 450 500 550 550
die height adjustment mm 50 60 80 80 80 80 110 110 120 120 120
between slide center and frame mm 210 230 300 300 350 350 380 390 420 460 490
bolster area(FBxLR) mm 400x700 440x810 580x900 580x1000 680x1150 680x1150 740x1300 760x1400 800x1400 880x1600 940x1800
bolster thickness mm 80 110 110 120 140 140 150 160 170 200 200
bed opening(dia/ FBxLR) mm 260x250 300x300 390x460 390x520 420x540 420x540 480x600 480x600 370x570 440x580 440x580
slide area(FBxLR) mm 300x360 340x410 400x480 420x560 500x650 540x680 580x770 600x800 650x850 700x950 720x1000
shank hole(dia x depth) mm Φ 40x60 Φ 40x60 Φ 50x80 Φ 50x80 Φ 60x80 Φ 60x80 Φ 65x85 Φ 65x90 Φ 70x90 Φ 70x90 Φ 70x90
between columns mm 450 550 560 640 760 760 850 870 960 920 960
main motor power KW 4 5.5 7.5 7.5 11 11 15 18.5 22 30 37
outline dimension(FBxLRxH) mm 1600x1125x2200 1780x1225x2400 2000x1305x2600 2050x1390x2900 2030x1620x3060 2030x1660x3060 2450x1770x3210 2670x1900x3520 2940x1990x4085 3100x2130x4480 3400x2210x4620
net weight KG 2600 3450 5400 7000 9840 10400 14920 17350 24500 28000 34000
Open Front Single Point Mechanical Hydraulic Power Press Punching/Punch Machine Open Front Single Point Mechanical Hydraulic Power Press Punching/Punch Machine Open Front Single Point Mechanical Hydraulic Power Press Punching/Punch Machine Open Front Single Point Mechanical Hydraulic Power Press Punching/Punch Machine Open Front Single Point Mechanical Hydraulic Power Press Punching/Punch Machine Open Front Single Point Mechanical Hydraulic Power Press Punching/Punch Machine Open Front Single Point Mechanical Hydraulic Power Press Punching/Punch Machine
FAQ

Q: What is a power press machine?
A: A power press machine is a mechanical tool used to shape or deform materials by applying pressure through a powered mechanism.

Q: What are the different types of power press machines?
A: The different types of power press machines include mechanical power presses, hydraulic power presses, and pneumatic power presses.

Q: What are the applications of power press machines?
A: Power press machines are used in various industries for tasks such as punching, blanking, bending, forming, and shearing operations.

Q: How does a mechanical power press work?
A: Mechanical power press machines use a motor-driven flywheel and a clutch mechanism to transfer energy and generate force for the pressing operations.

Q: What are the advantages of using a hydraulic power press machine?
A: Hydraulic power press machines offer high force capabilities, precise control, and versatility in applications.

Q: Are power press machines safe to use?
A: Power press machines can be dangerous if not operated properly. Safety measures such as guards, emergency stops, and proper training should be followed to ensure safe operation.

Q: Can power press machines be automated?
A: Yes, power press machines can be automated with the addition of programmable controls and sensors to enhance productivity and efficiency.

Q: How can I maintain a power press machine?
A: Regular maintenance, including lubrication, inspection of components, and calibration, is essential for ensuring the optimal performance and longevity of a power press machine.
